EDS Series Outdoor Front Access LED Screen

EDS Series Outdoor Front Access LED Screen
EDS Series Outdoor Front Access LED Screen
EDS Series Outdoor Front Access LED Screen
EDS Series Outdoor Front Access LED Screen
EDS Series Outdoor Front Access LED Screen
EDS Series Outdoor Front Access LED Screen
EDS Series Outdoor Front Access LED Screen
EDS Series Outdoor Front Access LED Screen

EDS Series Outdoor Front Access LED Screen

Pixel Pitch: P2.5mm / P3.076mm / P4mm / P5mm / P6mm / P8mm / P10mm

Cabinet Size: Customized

Pixel Configuration: SMD

Refresh Rate: 1920Hz

Viewing Angle: 140/140 degree

Power Consumption (Avg./Max.): 300W / 720W

IP Rate: IP65

Inquire Now
Features

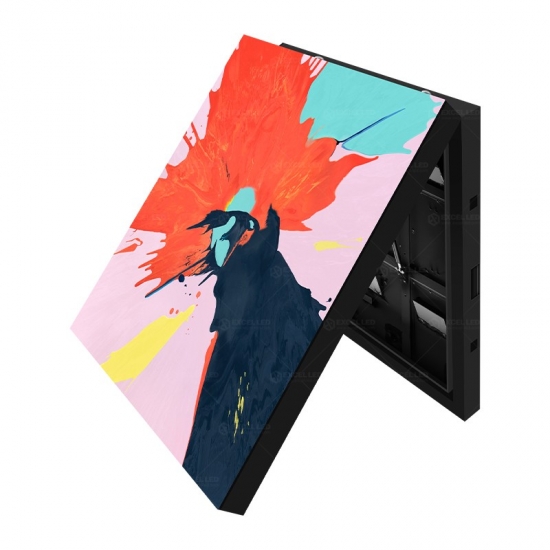

Fully Front Accessible

 All the accessories including module, power and cables can be removed from front easily, reducing operating cost.



Cabinet Structure

-



IP65 Weather Rating

Special treatment of protection rating with IP65, fully waterproof panel.



High Definition Performance

P3 / P4 / P5 are recommended



Double Sides Option

-



Wide Applications

There will be single front open and double-sided for options.

Single one mainly for wall mounted, and double sided is best for billboard on poles.

Specifications
Value P2.5 P3 P4 P5 P6 P8 P10
Pixel Pitch 2.5 mm 3.076 mm 4 mm 5 mm 6.667 mm 8 mm 10 mm
Brightness 5000 nits 5000 nits 5000 nits 5000 nits 6000 nits 6000 nits 6000 nits
Pixel Configuration SMD SMD SMD SMD SMD SMD SMD
Gray Scale 65536 65536 65536 65536 65536 65536 65536
Refresh Rate ≥ 1920Hz ≥ 1920Hz ≥ 1920Hz ≥ 1920Hz ≥ 1920Hz ≥ 1920Hz ≥ 1920Hz
Pixel Matrix Per Panel 384×384 312×312 240×240 192×192 144×144 120×120 96×96
Pixel Matrix Per Sq.M 160,000 105,625 62,500 40,000 22,498 15,625 10,000
Viewing Angle (H/V) 140/140 deg 140/140 deg 140/140 deg 140/140 deg 140/140 deg 140/140 deg 140/140 deg
Power Consumption (Max/Avg) 720/300 720/300 720/300 720/300 720/300 720/300 720/300
IP Rate IP65 IP65 IP65 IP65 IP65 IP65 IP65
Input Voltage (AC) 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240
Panel Size (W*H*D) Customized Customized Customized Customized Customized Customized Customized
Operating Temperature -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C
