Indoor Fixed LED Display

Home / Indoor Fixed LED Display /

LED Magnet Module for cost-effective indoors LED Screen

Pixel Pitch: P1.25mm / P1.53mm / P1.86mm / P2mm / P2.5mm / P3mm / P4mm / P5mm

Module Size: 320mm×160mm

Cabinet Size (W×H×T): 960mm×960mm×120mm

Pixel Configuration: SMD

Refresh Rate: 1920Hz / 3840Hz

Viewing Angle: 140/140 degree

Power Consumption (Avg./Max.): 300W / 800W

Inquire Now

Features

LED Module

◆ 320mm×160mm ◆ 1920Hz / 3840Hz

Product Features

High Refresh Rate

◆ Low power consumption ◆ High-definition ◆ Smooth video

Wide Viewing Angle

Immersive restoration experience, always enjoy the visual feast.

Vacuum Packaging

Moisture-proof measures

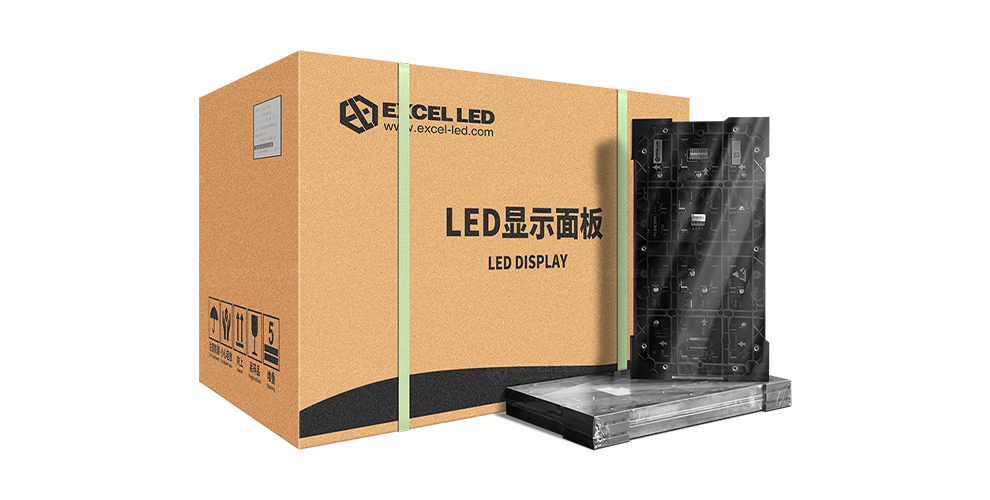

Packaging

Installation

Specifications

Value	P1.25	P1.53	P1.86	P2	P2.5	P3	P4	P5
Module Size	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm
Physical Resolution (W×H)	256×128dots	208×105dots	172×86dots	160×80dots	128×64dots	104×52dots	80×40dots	64×32dots
Pixel Configuration	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD
Brightness	500 cd/m²	500 cd/m²	600-800 cd/m²	600-800 cd/m²	800 cd/m²	1000 cd/m²	1000 cd/m²	1000 cd/m²
Pixel Matrix/Sqm	640,000dots/m²	426,409dots/m²	287,296dots/m²	250,000dots/m²	160,000dots/m²	105,625dots/m²	62,500dots/m²	40,000dots/m²
Minimum Viewing Distance	1 meters	1.5 meters	1.8 meters	2 meters	2.5 meters	3 meters	4 meters	5 meters
Gray scale	65,536 levels per color	65,536 levels per color	65,536 levels per color	65,536 levels per color	65,536 levels per color	65,536 levels per color	65,536 levels per color	65,536 levels per color
Refresh frequency	3840Hertz	3840Hertz	3840Hertz	3840/1920Hertz	3840/1920Hertz	3840/1920Hertz	3840/1920Hertz	3840/1920Hertz
Input power frequency	50 or 60 Hertz	50 or 60 Hertz	50 or 60 Hertz	50 or 60 Hertz	50 or 60 Hertz	50 or 60 Hertz	50 or 60 Hertz	50 or 60 Hertz
Input Voltage (AC)	100 ~ 240	100 ~ 240	100 ~ 240	100 ~ 240	100 ~ 240	100 ~ 240	100 ~ 240	100 ~ 240
Ingress Protection	IP30	IP30	IP30	IP30	IP30	IP30	IP30	IP30
Max Power Consumption	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²
Average Power Consumption	300W/m²	300W/m²	300W/m²	300W/m²	300W/m²	230W/m²	230W/m²	230W/m²
Viewing Angle	Horizontal 140 deg ; Vertical 140 deg
Operating environment	Temperature: -20°C+60°C ; Humidity: 10%-90%RH
