Pixel Pitch: P10mm
Module Size: 480x320mm
Cabinet Size: 960mm×960mm×77mm(W×H×T)
Pixel Configuration: SMD
Refresh Rate: 3840Hz
Product Material: Aluminum
Viewing Angle: 110/110 degree
Power Consumption (Avg./Max.): 650W/250W
IP Rate: IP65
Panel Weight: 30KG
EXCEL LED OK Series is Premium 3D Outdoor LED Screen for advertising , it can be installed on building with Right Angle or Right curve Angle . With 3D Video Source , it makes outstanding visual effect and very eye-catching for outdoor advertising .
The LED Module housing is Die-casting Aluminum which make it very good heat disspation , it is the first choice for outdoor led advertising in Middle East Countries .While it is high humidity proof , also the first choice for led billboard be installed nearby the Sea .
 |

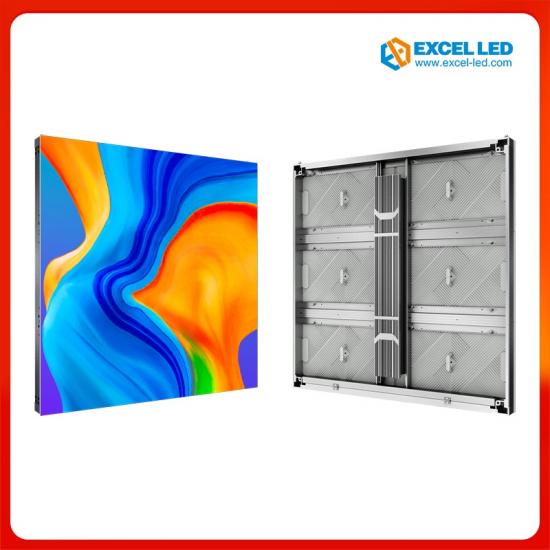

P10 outdoor LED display-exploded view P10 outdoor LED module, die-cast aluminum box, simple wiring design, efficient waterproof design, high-quality power supply, receiving card - a reasonable composition of P10 outdoor LED display
|
|
Panel Size Flexible Panel Size(mm) 960x320 960x640 960x960 960x1280 Can meet the requirements of different scenes on the size |
 |
 |
Special Design ◆ The P10 LED display box is composed of an all-aluminum kit with high heat dissipation efficiency. ◆ The special pattern design helps the P10 LED display box to quickly conduct and dissipate heat during operation. |
|
Special Voltages Supply Design Power cables supply both 3.2V and 4.2V to interface board to reduce power consumption, Max power consumption is 650W/Sqm |
 |
 |
Module Connection Hub board connections for Modules, Super stable and Safe |
|
Waterproof Test IP65 Waterproof for Both front and back side of Cabient |
 |
 |
Brightness Test Standard Brightness ≥6500cd/m² High Brightness Can Reach More Than 10,000 Level Brightness |
|
Front Maintenance Design This design saves a lot of space for building P10 outdoor LED display, and daily maintenance becomes very convenient. |
 |
 |
Light Weight As Low As 77mm Thick The Weight of A Single Box Is As Low As 28.5kg |
|
High Contrast Ratio The high contrast and high brightness of the P10 outdoor LED display allow the entire LED display to be vividly displayed even in the sun |
 |
 |
Naked Eye 3D Support The Curved Corner Stitching; Support Right Angle Rotation Stitching |

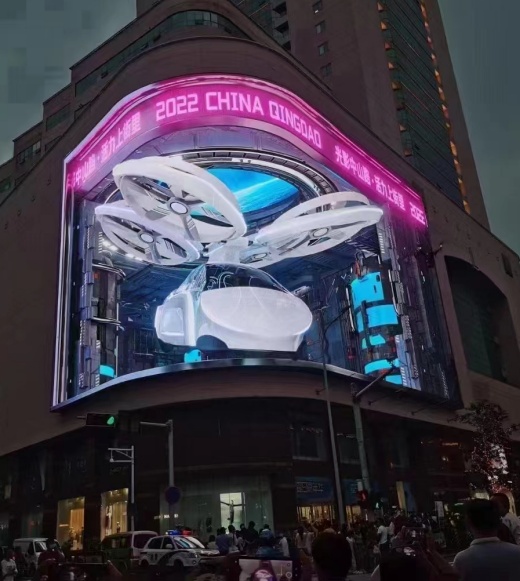

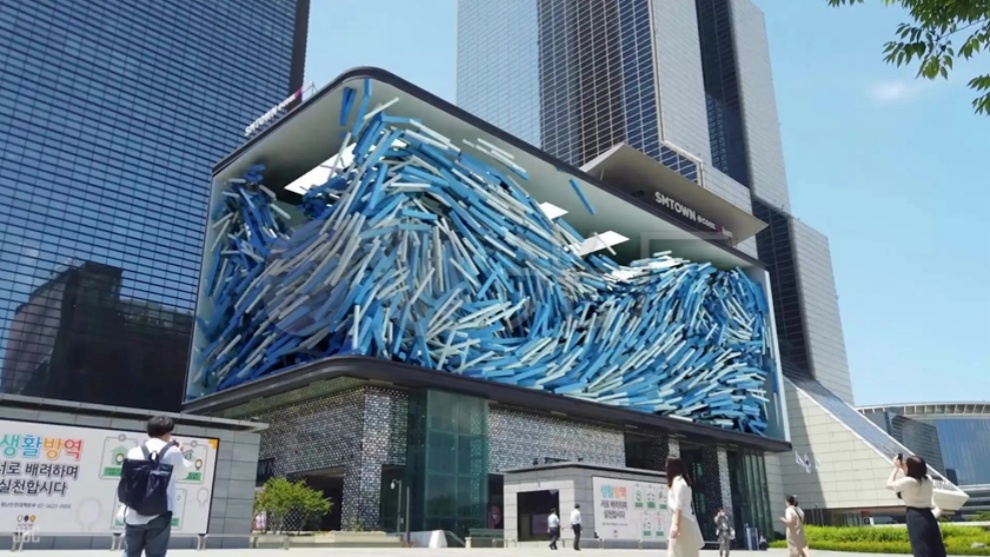

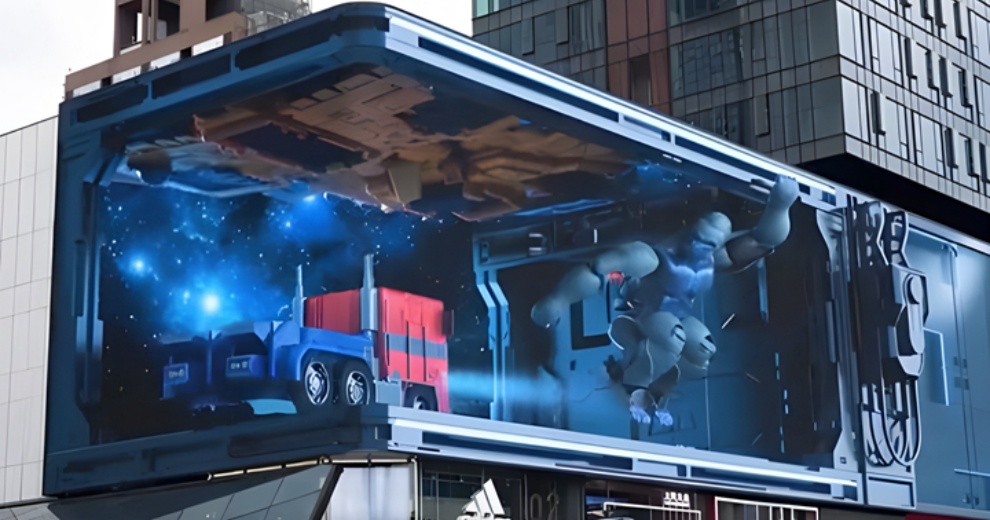

P10 outdoor advertising LED display—supports naked-eye 3D
|
Outdoor advertising has always been a highly effective platform for brand marketers. As technology advances, traditional billboards have transformed into high-tech, dynamic LED displays. With its three-dimensional and realistic picture display effect, the naked-eye 3D LED display brings people a novel and shocking visual experience, and has even become a new landmark in the city, releasing huge commercial value. Today we will explore such an outdoor advertising solution: support naked-eye 3D P10 outdoor LED screen |
|
Analysis of the naked-eye 3D principle: Creation of a natural sense of depth, The key to achieving the naked-eye 3D effect of outdoor LED displays lies in the following two principles: |
 |
Naked-eye 3D technology: Through the special structure and display principle of the screen, the human eye has a sense of depth when viewing without the need to wear 3D glasses. Applicable screen selection: required when choosing outdoor LED display High brightness and contrast: In order to present clear, bright images in outdoor environments, it is crucial to choose screen technology with high brightness and contrast. High refresh rate: In order to avoid image flickering and visual fatigue, choose screen technology with a fast refresh rate to ensure smooth presentation of smooth images. Our P10 outdoor advertising LED display-OK Series can well embody these key technologies. |
|
|
Innovation and technology know no borders, and so does advertising. The P10 outdoor LED screen proves this. For those unfamiliar with this modern wonder, it is a high-resolution, large-format outdoor LED display. The main difference is the "P10" specification, which represents pixel density and proximity between LED clusters, greatly affecting visual clarity and resolution. Specifically, the P10 has an inter-pixel distance of 10mm, ensuring excellent resolution even at greater distances. |
|
Perhaps the most groundbreaking feature of the P10 outdoor LED display is its support for naked-eye 3D technology. It enables direct viewing of 3D visuals without the need for any special 3D glasses, which is an absolute game changer for outdoor advertising. This feature greatly enhances depth perception in images and videos, creating a realistic and immersive visual experience for viewers. |
| FAQ |
| 1. What is P10 outdoor LED screen? |
|
The P10 outdoor LED display is a high-resolution, large-format outdoor LED display. P10 means the pixel pitch is 10mm, which refers to the distance between the centers of each LED lamp bead and affects the resolution and clarity of the screen. The optimal viewing distance when using P10 outdoor LED screen is ≥10 meters. |
| 2. What does "naked-eye 3D" mean? |
|
"Naked-eye 3D" refers to 3D technology that can be experienced without special glasses. The technology provides a more immersive visual experience by enhancing depth perception in images and videos. |
| 3. How does the P10 outdoor LED display display naked-eye 3D content? |
|
The P10 outdoor LED screen can display naked-eye 3D content using special screen grating or parallax barrier technology. These techniques divide the image into two distinct, alternating sets of strips, which are perceived separately by the human eye, creating a 3D effect. |
| 4. Considering 3D technology, does the P10 outdoor LED screen require special maintenance? |
|
The P10 Outdoor LED Screen is rugged and suitable for outdoor use and requires standard LED display maintenance such as regular cleaning and ensuring it is protected from extreme weather conditions. The 3D technology itself does not require any additional special maintenance. |
| 5. Do all P10 outdoor LED screens support naked-eye 3D vision? |
|
No, not all P10 outdoor LED screens support naked-eye 3D. Common outdoor advertising LED screens on the market can only support ordinary 2D video playback. The P10 outdoor advertising LED screen-OK series supports naked-eye 3D. |
| 6. How does naked-eye 3D technology affect the energy consumption of the P10 LED screen? |
| Due to higher processing requirements, the P10 LED screen consumes slightly more energy when displaying 3D content than 2D content. Overall, though, the impact on consumption is minimal. |
| 7.Does the P10 outdoor LED display have any special requirements for the venue? |
|
No, but in general, you need to pay attention to site assessment before installing outdoor LED displays: Before installation, it is crucial to conduct a careful assessment of the site. Make sure the venue meets the size and requirements of the LED display and has a stable support structure. This can be done by first practicing our staff to conduct professional assessment and budget calculation. |
